LAN Wiring & Pinouts 10base-T, 100base-TX/T4, 1000base-T, 10Gbase-T. Note: These pages were originally written when the world was young and 10m LANs were nose-bleedingly fast. They have been

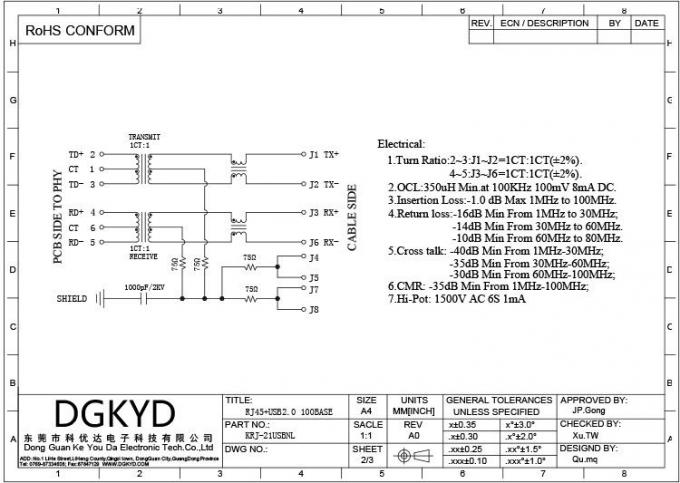

updated over the years but still contain some now long-in-the-tooth (aka legacy) stuff about crossed cables especially. The Compass DeRose Guide to Ethernet computer network wiring. This page gives you all the information you need to know about how to install and wire up a small CAT5, CAT5e, or CAT6 ethernet computer network, such as in your home or a small office; or to make your own Ethernet cables. The RJ45 connector. Ethernet design guidelines state that there must be a 1:1 isolation transformer between the cable and the PHY. These are known as the magnetics. The TE Mag45 connector. Ethernet transformers are surprisingly expensive in small quantities so in my design I’ve chosen the TE 6605424-1 connector that integrates the magnetics and an ESD protection circuit into the connector. Find the GE Intelligent
